Raspberry Pi Pico RP2040 Microcontroller Board
Raspberry Pi Pico is a flexible and cost-effective development platform based on the official RP2040 chip, which is designed entirely in-house by Raspberry Pi. For software development, you can use the Raspberry Pi's C/C++ SDK or MicroPython.
The Raspberry Pi Pico is a flexible and cost-efficient development platform that has been fully designed in-house at Raspberry Pi, based on the Official RP2040 chip.
For software development, either Raspberry Pi's C/C++ SDK, or the MicroPython is available. They're also complete development resources and tutorials to help you get started easily, and integrate it into end products quickly.

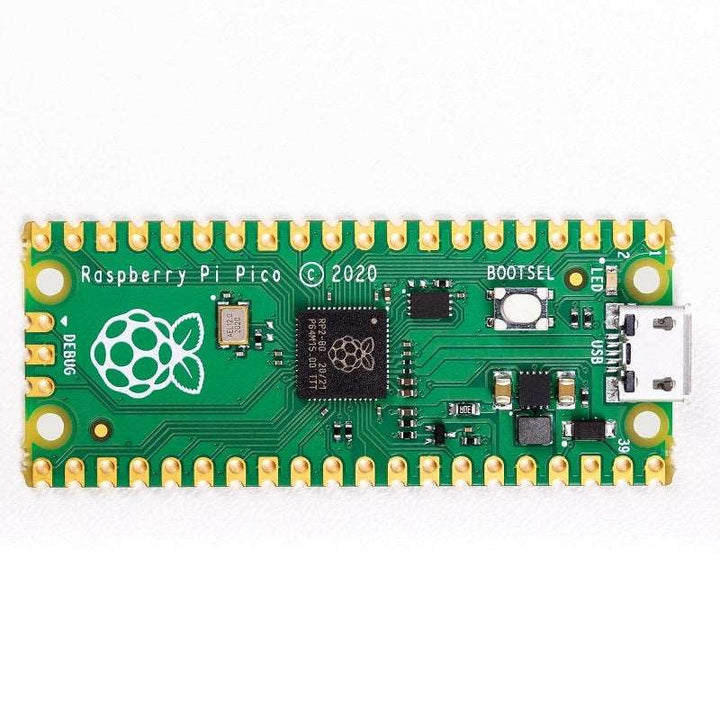

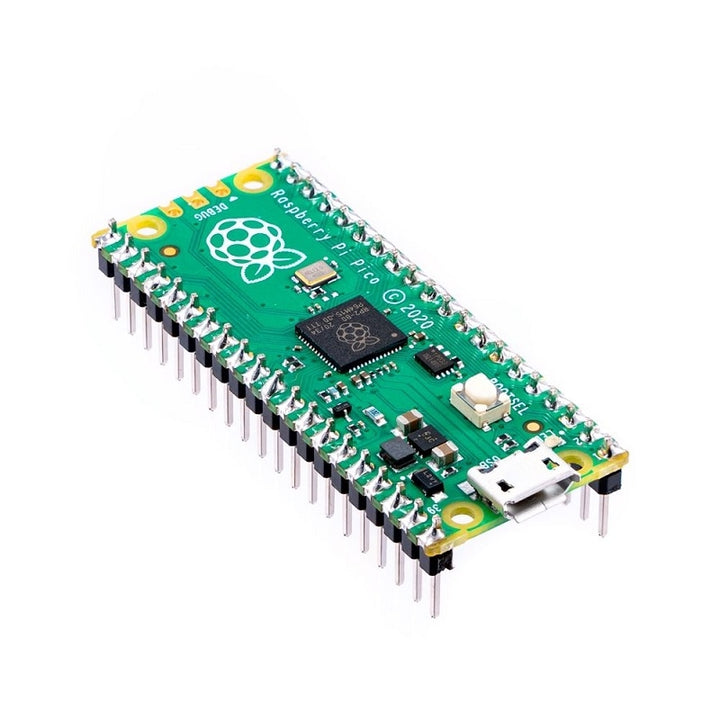

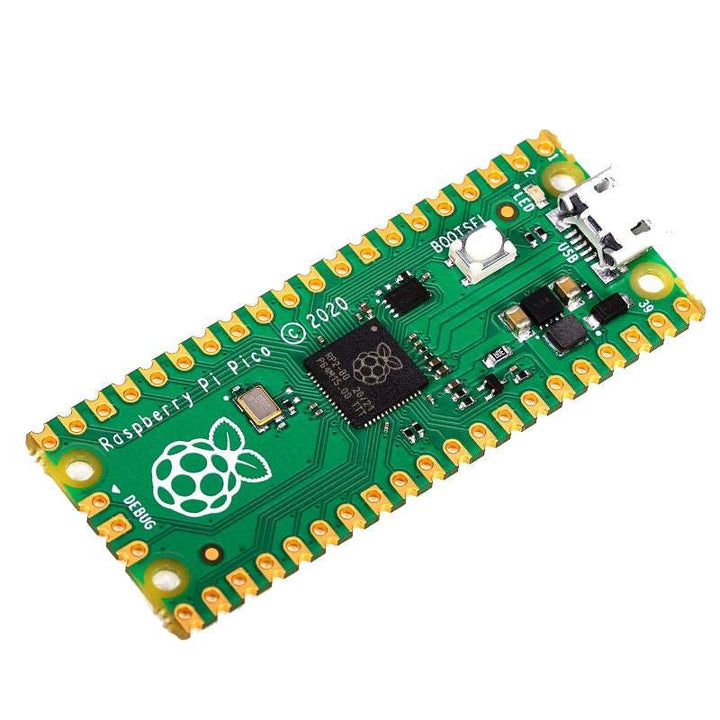

The Raspberry Pi Pico is a microcontroller with an RP2040 chip featuring 2 x ARM Cortex-M0+ cores clocked at 133MHz; 256KB RAM; 2 MB of onboard Flash, 30 GPIO pins; and a range of interfacing options. It is a single-sided PCB measuring just 21mm x 51.3mm with a micro-USB port and 40 main user pins with through-hole pins to allow for surface mounting.
Features
- Compact and Easy-to-mount
- USB Micro for Power and Data
- Large RAM and Flash Size
- Programmable in MicroPython, C, and C++
- Flexible Power Input

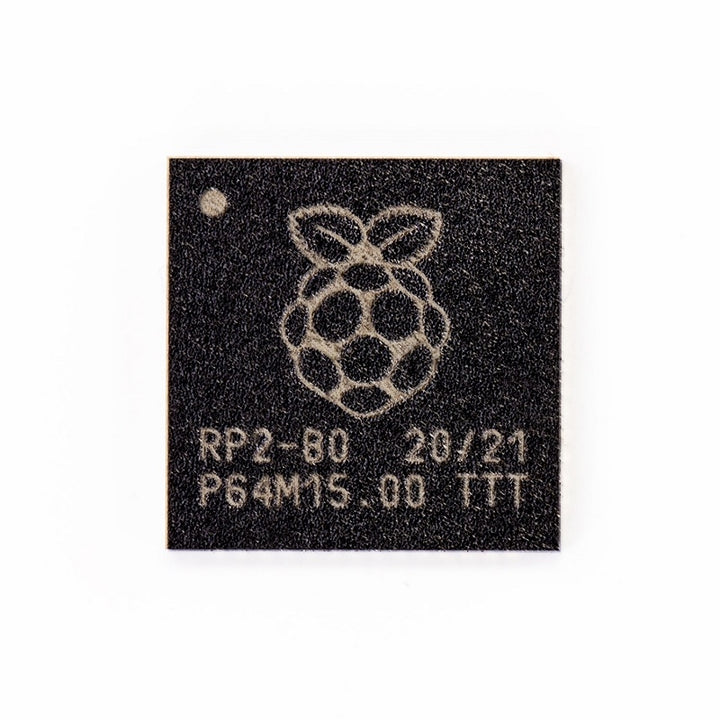

Specification of the RP2040 microcontroller:
- Dual-core cortex M0+ at up to 133MHz with an on-chip PLL allowing variable core frequency
- 264K multi-bank high-performance SRAM
- External Quad-SPI Flash with eXecute In Place (XIP)
- High-performance full-crosspoint bus architecture
- On-board USB1.1 (device or host)
- 30 multi-function General Purpose IO (4 can be used for ADC)
◦ 1.8-3.3V IO Voltage (NOTE Pico IO voltage is fixed at 3.3V)
- 12-bit 500ksps Analogue to Digital Converter (ADC)
- Various digital peripherals
2x UART, 2x I2C, 2x SPI, up to 16 PWM channels
1x Timer with 4 alarms, 1x Real Time Counter
- Dual Programmable IO (PIO) peripherals
◦ Flexible, user-programmable high-speed IO
◦ Can emulate interfaces such as SD Card and VGA
Note: The majority of the RP2040 microcontroller pins are brought to the user IO pins on the left and right edge of the board. Four RP2040 IO are used for internal functions – driving an LED, on-board Switched Mode Power Supply (SMPS) power control and sensing the system voltages.
