CrowPi L Base Shield

$18.99

This CrowPi L Base Shield with UART/I2C/Analog/Digital interface. 150+ kinds of Crowtail modules can be plugged onto the CrowPi L Raspberry Pi laptop through this base shield.

Add to WishlistCompare
Ask a Question
People are viewing this right now
Description

Onboard ADC chip MCP3008

This CrowPi L Base Shield with UART/I2C/Analog/Digital interface. 150+ kinds of Crowtail modules can be plugged onto the CrowPi L Raspberry Pi laptop through this base shield. Moreover, this expansion board has an onboard ADC chip, so it is possible to use an analog output module on the CrowPi L. It uses the MCP3008 chip to communicate with the Raspberry Pi through the SPI interface.

base shield of 20 interface

Crowtail compatible interface

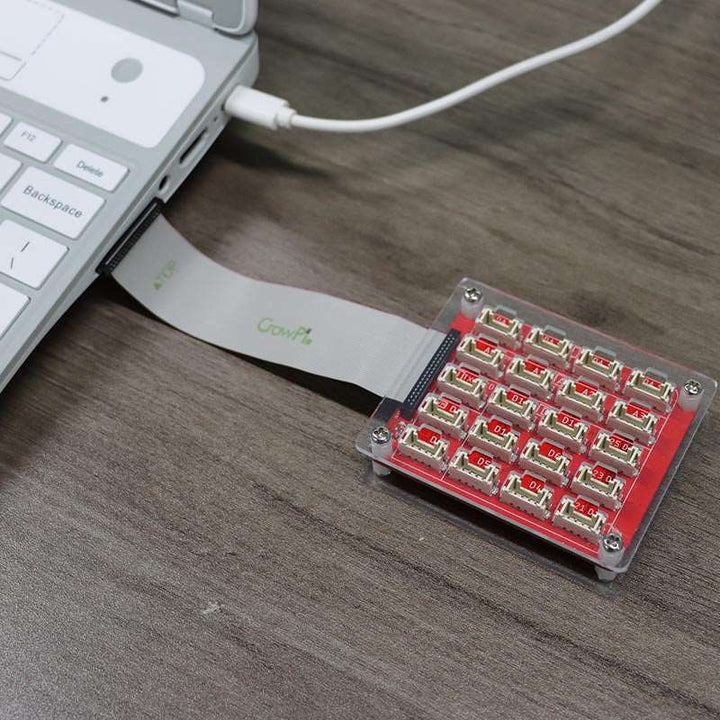

After the user plugs the CrowPi L Base Shield on the CrowPi L, the Crowtail series sensor can be connected externally, and the user can learn the software and hardware knowledge through our tutorial.

base shield for crowpi L



Feature

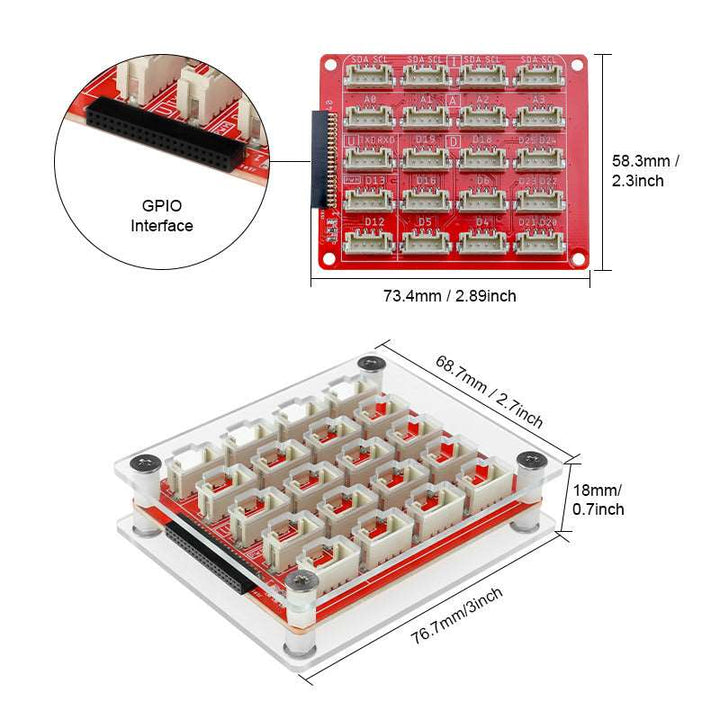

  • Base Shield Size(length x width ):73.4 x 58.3mm
  • Acrylic protection Case Size(length x width ):76.7 x 68.7mm
  • Crowtail compatible interface
  • Length of GPIO Cable: 100mm

Package list

  • Crowtail- Base Shield for CrowPi L Raspberry Pi Laptop x1
